CorVent™ by Coridea

“Before COVID-19, this would be a 3 year endeavor at minimum, and we are accomplishing it in less than 3 months.”– Coridea Dir. Of Engineering, Edward Ruppel

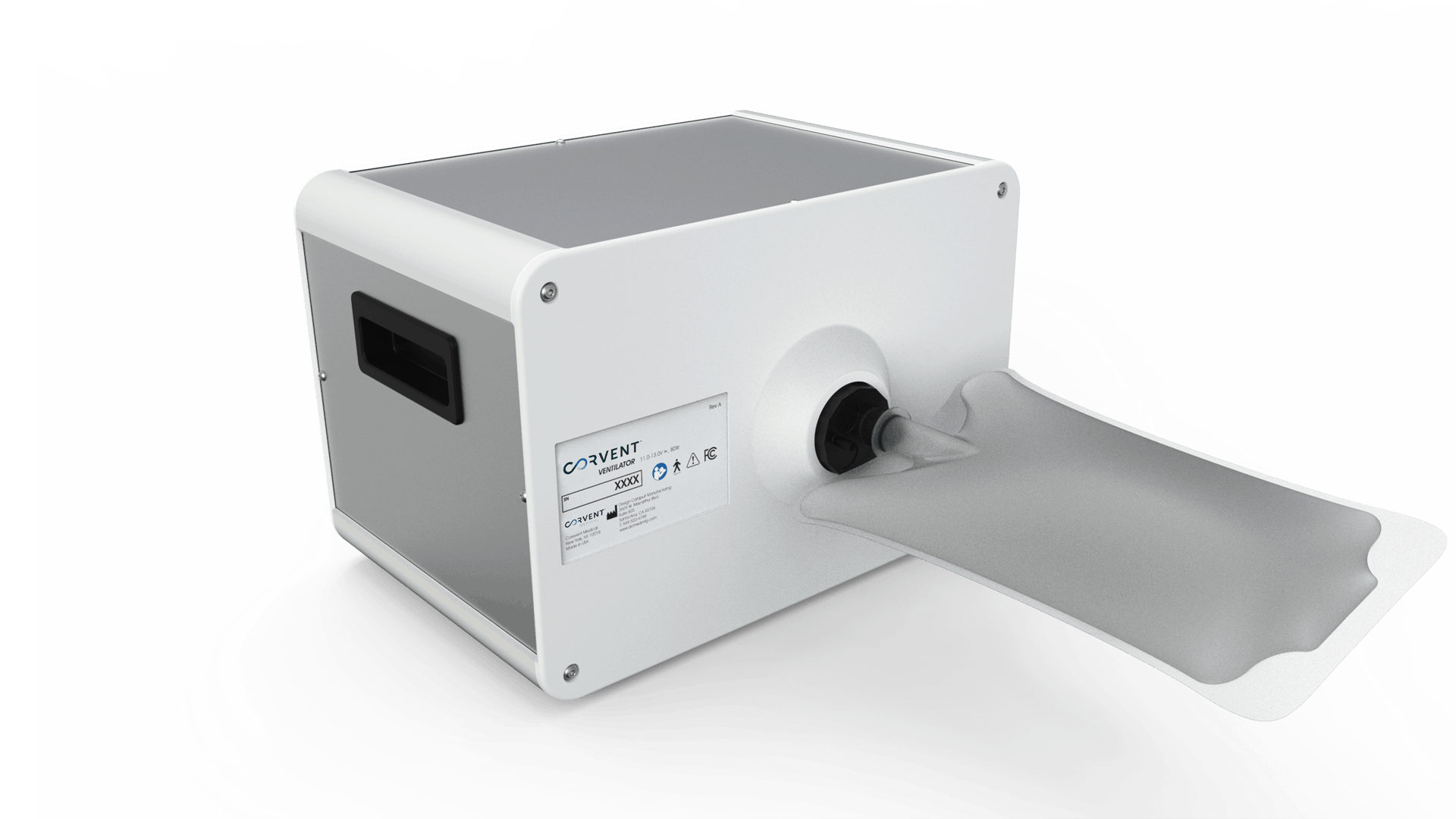

The CorVent™ Single-Use Ventilator is the first single-patient ventilator enabling rapid and affordable deployment with superior infection control. The device complements existing ventilator products when the number of patients exceed hospital supply or underserved markets require a cost-effective solution. Its simple, streamlined functionality is optimized for long-term storage without ongoing maintenance requirements.

Edward Ruppel added: “The first days of the pandemic made it abundantly clear to our Team that traditional ventilators and their high-cost service model are simply unfit to deal with mass-casualty situations. This provided us with the vision to fundamentally change the economics and safety of ventilation. Creating a device that protected both the patient and provider, which could be pulled off the shelf 10 years later and simply work, is the only way to effectively fight this virus and the next one.”

Building a ventilator from the ground up is no small feat, it is a life-saving and life-preserving device that requires conformance to numerous rigid standards for performance. Coridea is developing CorVent™ as a continuous support ventilator, meaning it can safely and effectively support patients for the entirety of their hospital stay.

PreviousNext
123456
  • Share on Facebook
  • Share on Twitter
  • Share on Linkedin
  • Share on Reddit
  • Share by Mail

Characteristics

  • Easy to use Quick set-up and simple operation allowing healthcare providers with wide range of skills to treat patients
  • Environmentally safe features viral filters to minimize expiratory viral filtration
  • All the critical functions required to support COVID-19 patients from admission through to resumption or ICU transfer
  • Affordable solution to maximize patient care capability
  • Single Use disposable ventilator to maximize patient & provider safety

Specifications

Modes of Ventilation VCV, and Assist Control
Tidal Volume (mL) 150 – 800
Respiratory Rate (bpm) 12-40
Inspiratory time (s) 0.3 – 2
Flow Rate (L/min) Max 120 L/min
I:E Ratio 3:1 to 1:11.5
PIP (cm H20) 18 – 40
PEEP (cm H20) 0, or 5 – 20
Humidified Air Yes
Viral Filter 99.9999% on inhalation and exhalation
Circuit Compliance < 2 ML/cm H20
Alarms LIP/Patient Disconnect/Leak HIP/Occlusion Hypoventilation/Apnea
Low Power

Partners

Learn more about CorVent™
All 5 /Vulcan-5 Prototypes 5

CorVent by Coridea

BLU3 Vent by BLU3

i3 Breather by L3 Harris

FieldVent by Northrop Grumman

NAVSEA PRE-Vent
